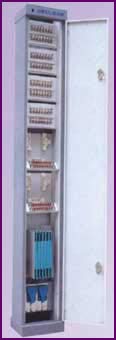

ZHPXG1 Integrated Cabinet for Transmission
Model Size ODF DDF
ZHPXG1-1 2000x350x300 24 32
ZHPXG1-2 2200x350x300 32 32
ZHPXG1-1 2600x350x300 48 32

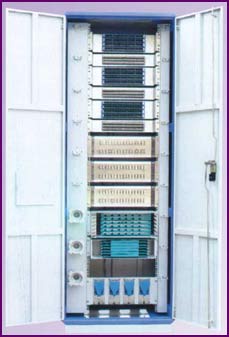

ZHPXG2 Integrated Distribution Cabinet
Model Size ODF DDF
ZHPXG2-1 2000x750x450 24 32
ZHPXG2-2 2200x750x450 36 48
ZHPXG2-3 2600x750x450 72 64

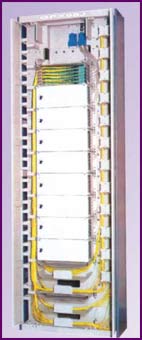

GPX98J1 Indoor ODF
Model Size Capacity Unit
GPX98J1-1 2000x840x300 576 8
GPX98J1-2 2200x840x300 648 9
GPX98J1-3 2600x840x300 792 11

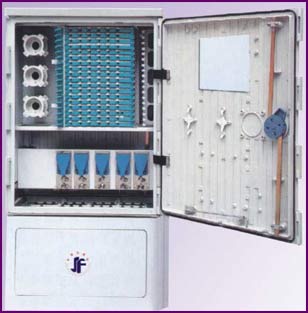

GPX98X1 Optical Cable Cross Connecting Terminal
  • Insert Loss: <=0.2dB
  • Return Loss:>=45dB
  • Durability life circle:>1000 times
GPX98G1GPX98G2 Optical Fiber Distribution Cabinet   Model Size Capability Unit
GPX98G1-1 GPX98G2-1 2000x750x450 576 8
GPX98G1-2 GPX98G2-2 2200x750x450 648 9
GPX98G1-2 GPX98G2-3 2600x750x450 792 11
GPX98G3GPX98G4 Optical Fiber Distribution Narrow Cabinet   Model Size Wire Capability
GPX98G3-1 2000x350x300 <=96 core
GPX98G3-2 2200x350x300 <=96 core
GPX98G3-3 2600x350x300 <=96 core
GPX98G4-1 2000x350x300 <=144 core
GPX98G4-2 2200x350x300 <=144 core
GPX98G4-3 2600x350x300 <=144 core
